Stainless steel two-stage deviation switch
The stainless steel two-stage deviation switch is made of stainless steel material by die-casting, with high strength to ensure rusting. It has an IP67 protection level and good sealing performance of the entire machine, which can work normally in a submerged state.
- ZXPP-220LX
- ZHUOXIN
- 24V-380V
- IP67
- TT, PayPal, Credit card, Western union
- +86-15163766288

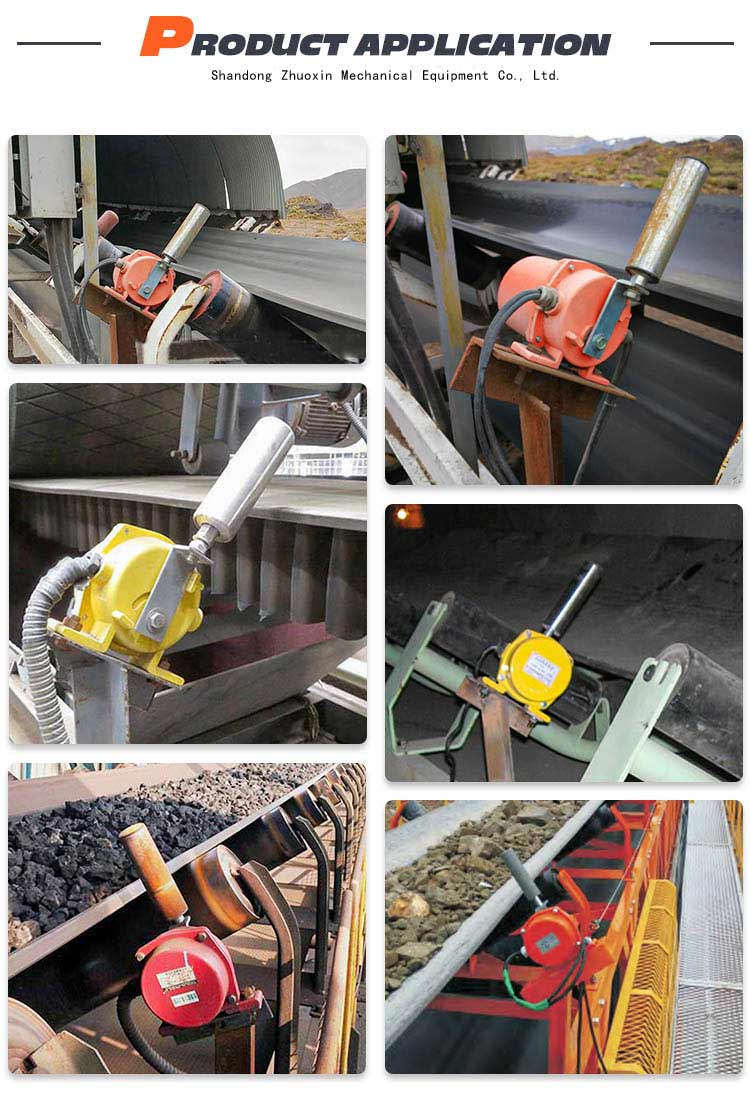

- The two-stage deviation switch is widely used in various fields such as metallurgy, coal, cement building materials, mining, power, ports, metallurgy, chemical industry, etc., including conventional belt conveyors, underground cable support belt conveyors, ship loading and unloading systems, stacking/reclaiming conveyors, inclined and shuttle conveyors, cranes, excavators, boom limiters, skirt feeders, and other types of conveyors. {$InfoTitle}
Description
ZXPP-220LX stainless steel two-stage deviation switch
The ZXPP-220LX stainless steel two-stage deviation switch is made of stainless steel die-casting material, which has high strength and ensures no rust. The protection level of IP67 and the good sealing performance of the whole machine can work normally in a submerged state. When the conveyor belt deviates during operation, the conveyor belt touches the switch roller and causes the roller to deflect. When the roller deflection angle reaches level 1 switch angle, the switch sends a signal< Br/>
Technical parameters:
Environmental temperature: -35 ℃~+60 ℃
Relative humidity: not greater than 90
Switch housing: IP66 waterproof and dustproof
Contact capacity: 5-10A
Output contact: Double breakpoint quick action pure silver
Working tension: greater than 2.5 kilograms is sufficient
Reset method: manual reset
Locking angle: 20
Action angle: 30
Overall weight: 3.8kg
Reliability: Three years of fault free operation
Scope of application:
Various types of belt conveyors
Bucket elevator
Stacking/reclaiming conveyor
Various production/packaging lines
Optional accessories:
Special steel wire rope
Installation bracket
Special surface treatment suitable for highly corrosive environments
